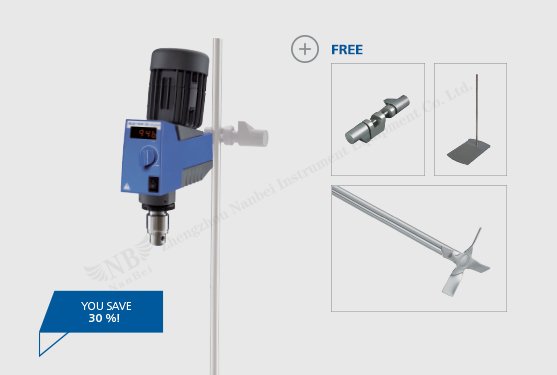

Electric Mixer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
NANBEI offers the ideal overhead stirrer for your stirring and mixing tasks in the lab - for lower to high viscosities. NANBEI overhead stirrers effortlessly process stirring quantities of up to 200 liters. NANBEI lab stirrers and overhead stirrers stand out due to their indispensable features, including an electronic safety circuit, a digital display, two speed ranges, and a controlling option via the lab software Labworldsoft. A broad spectrum of stirring tools is the key to successful mixing.
Functionality, safety, and longevity are the main goals in the development of NANBEI's overheard stirrers.
Find your ideal NANBEI stirrer by clicking on the adjacent categories.
Description
Package includes
The bestseller in the laboratory:
Technical
Stirring quantity max. per stirring position (H2O) | 20 l |
Motor rating input | 70 W |
Motor rating output | 35 W |
Speed display | LED |
Speed range | 60 - 2000 rpm |
Viscosity max. | 10000 mPas |
Output max. at stirring shaft | 26 W |
Permissible ON time | 100 % |
Torque max. at stirring shaft | 150 Ncm |
Torque max. at stirring shaft at 60 1/min (overload) | 300 Ncm |
Torque max. at stirring shaft at 100 1/min | 150 Ncm |
Torque max. at stirring shaft at 1.000 1/min | 24 Ncm |
Speed range I (50 Hz) | 60 - 500 rpm |
Speed range II (50 Hz) | 240 - 2000 rpm |
Speed range I (60 Hz) | 72 - 600 rpm |
Speed range II (60 Hz) | 288 - 2400 rpm |
Speed control | stepless |
Setting accuracy speed | 1 ±rpm |
deviation of speed measurement | 30 ±rpm |
Stirring element fastening | chuck |
Temperature display | no |
Chuck range min. diameter | 0.5 mm |
Chuck range max. diameter | 10 mm |
Hollow shaft, inner diameter | 10.5 mm |
Hollow shaft (push-through - when stopped) | yes |
Fastening on stand | extension arm |
Extension arm diameter | 13 mm |
Extension arm length | 160 mm |
Torque display | no |
Nominal torque | 1.5 Nm |
Timer | no |
Dimensions (W x H x D) | 88 x 294 x 212 mm |
Weight | 3.1 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 20 |
RS 232 interface | no |
USB interface | no |
Analog output | no |
Voltage | 220 - 240 / 100 - 115 V |
Frequency | 50/60 Hz |
Power input | 72 W |
